10 to 40 kVA Powervar Series 3200 UPS

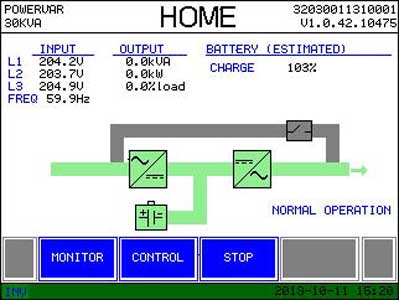

• Easy to Use Color Touch Screen Graphic Display (shown above)
  • Video (Full Resolution 189 MB)
  • Video (Reduced Resolutiion 24 MB)
• State of the Art On Line Design
• IGBT Rectifier (15 kHZ on 10/20 kVA, 7.5 kHZ on 30/40 kVA)
• Matched IGBT Inverter (15 kHZ on 10/20 kVA, 7.5 kHZ on 30/40 kVA)
  • See Rabbit & Turtle Section of WES Series 3200 Packet page #3 to understand benefit of matched IGBT rectifier and inverter
• 0.9 Output Power Factor for IT loads
• Internal Battery and Disconnect
• Rugged 300% Overload Capability for 10 seconds
• 1:1 Generator Compatibility (Gen kW:UPS kVA)
• Internal Maintenance Bypass
• Attractive Black Color
• Network Card Included
• Alarm Contacts Included
• Two Year Standard Warranty
• Additional Information Links
  • Advantages Sheet
  • Outline Drawing
    • 10 and 20 kVA Modules
    • 10 and 20 kVA Add on Battery Cabinets
    • 30 and 40 kVA Modules
    • 30 and 40 kVA Add on Battery Cabinets
  • Owners Manual
  • WES Series 3200 Packet

For a price request fill enter quantity and select submit button at bottom of form. (Note the 28.8 kVA size is an optimized derated 30 kVA module for the largest capacity allowed per code for a 100 A 208 V feed. For 28.8 kVA options, select 30 kVA options)

Qty	kVA	kW	Battery	Description	WES Part #
	10 kVA	9 kW	6 min.	120/208/3 Volt UPS Module w/ Internal Battery	105985
	20 kVA	18 kW	6 min.	120/208/3 Volt UPS Module w/ Internal Battery	105986
	28.8 kVA	23 kW	9 min.	120/208/3 Volt UPS Module w/ Internal Battery	106065
	30 kVA	27 kW	9 min.	120/208/3 Volt UPS Module w/ Internal Battery	105987
	40 kVA	36 kW	5 min.	120/208/3 Volt UPS Module w/ Internal Battery	105988

Extended Battery Options: For longer battery run times, matching add on battery cabinet(s) may be added. Battery cabinets include a DC Circuit Breaker. Battery time listed includes the standard batteries in the UPS module. Note at half load on the UPS the listed battery times (which are based on full load) will increase by 2 to 3 times.

10 kVA
	27 min. (106001)		56 min. (106003)		113 min. (106005)
	50 min. (106002)		95 min. (106004)
20 kVA
	25 min. (106006)		44 min. (106008)		109 min (106010)
	28 min. (106007)		57 min. (06009)
28.8 & 30 kVA
	15 min. (106012)		45 min. (106014)		128 min. (106016)
	25 min. (106013)		65 min. (106015)		194 min. (106017)
40 kVA
	11 min. (106018)		32 min. (106020)		89 min. (106022)
	18 min. (106019)		44 min. (106021)		140 min. (106023)

Other options that may be selected include,

External UPS Module Maintenance Bypass Panel
480 Volt Input Transformer Cabinet
208 Volt Isolation Transformer Cabinet
3 Year UPS and Battery Warranty
